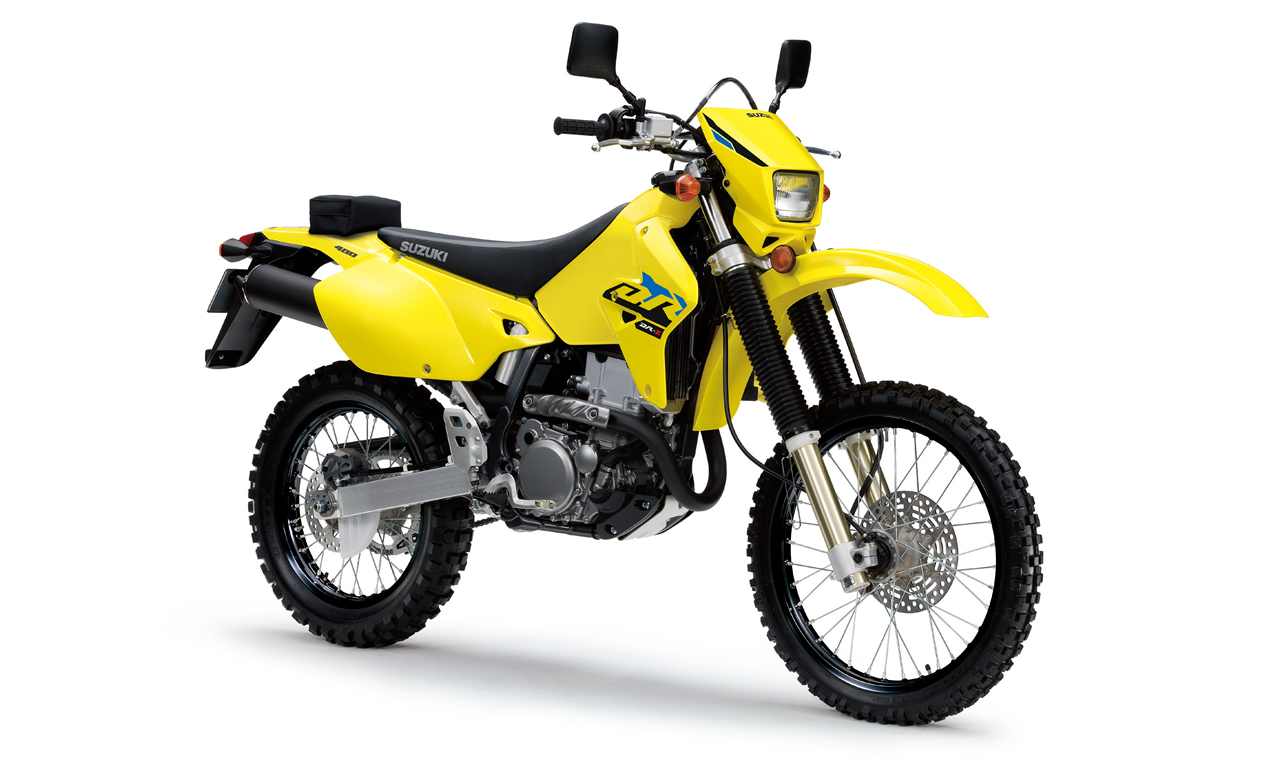

DR-Z400E
High-Performance Machine Arrives in the Off-road Arena
Compact, lightweight and agile like a motocrosser, along with the broad, tractable power and torque of a large-displacement 4-stroke engine – you can have it all with the DR-Z400E.
A powerful engine, narrowly shaped and highly rigid frame, longtravel suspension, large disc brakes and lightweight wheels – all come together for exhilarating, dirt-kicking, mud-slinging and hill-climbing performance.
- Key Features
-
- 398cm³ 4-stroke, DOHC engine produces broad, tractable power and torque.
- The engine features compact, streamlined design for the double advantage of low engine positioning and an extra-slim, rider-friendly, off-road chassis.
- Suzuki Composite Electrochemical Material (SCEM) cylinder for durability, weight reduction and superior heat transfer.
- KEIHIN FCR39 flat-side carburetor for seamless and smooth engine power delivery.
- Quick-release left side cover for easy access to the air filter.
- Dry sump lubrication system makes crankcase compact.
- Magnesium alloy clutch, magneto and cam covers contribute to weight reduction.
- Digitally mapped DC-CDI ignition system monitors throttle position/engine rpm and adjusts ignition timing to maintain efficient combustion.
- Rider-friendly electric engine starter with a lightweight electric starter motor and a compact, maintenance-free battery.
- Automatic decompression system lifts one exhaust valve to provide easy starting.
- The bodywork features smooth transitions between the tail and seat to facilitate machine control on or off the road.
- The long travel, 49mm stanchion-tube front forks and progressive-linkage rear suspension are both multi-adjustable.
- Narrow frame made of thin, round and rectangular chrome-moly steel tubes for exceptional torsional rigidity with minimum weight.
*Click the icons

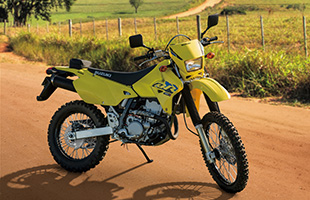

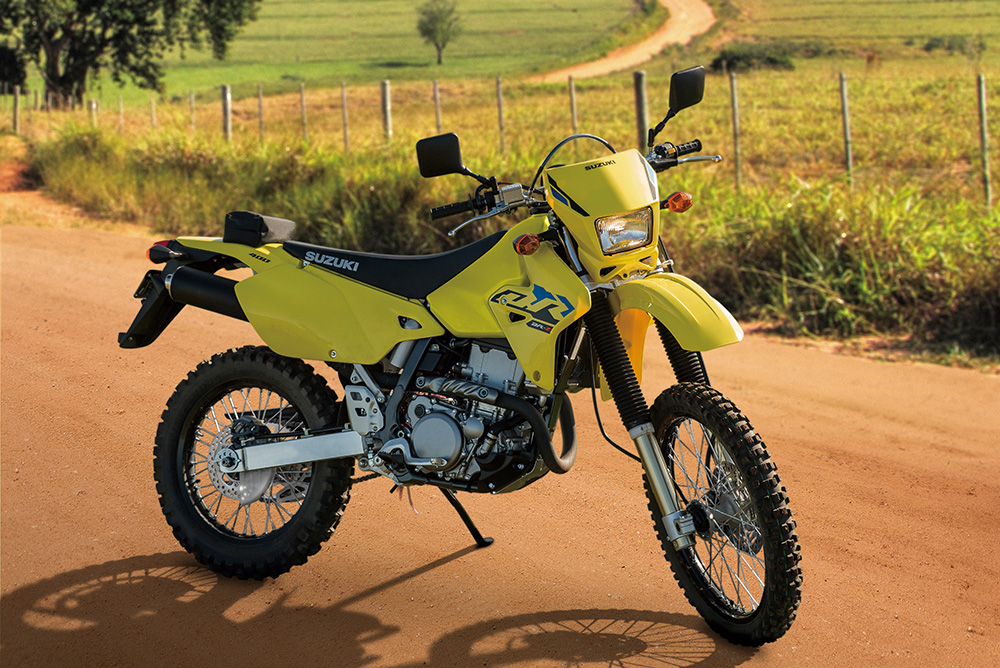

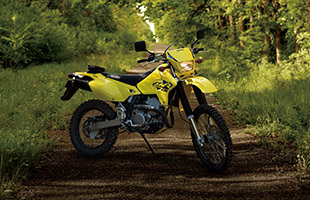

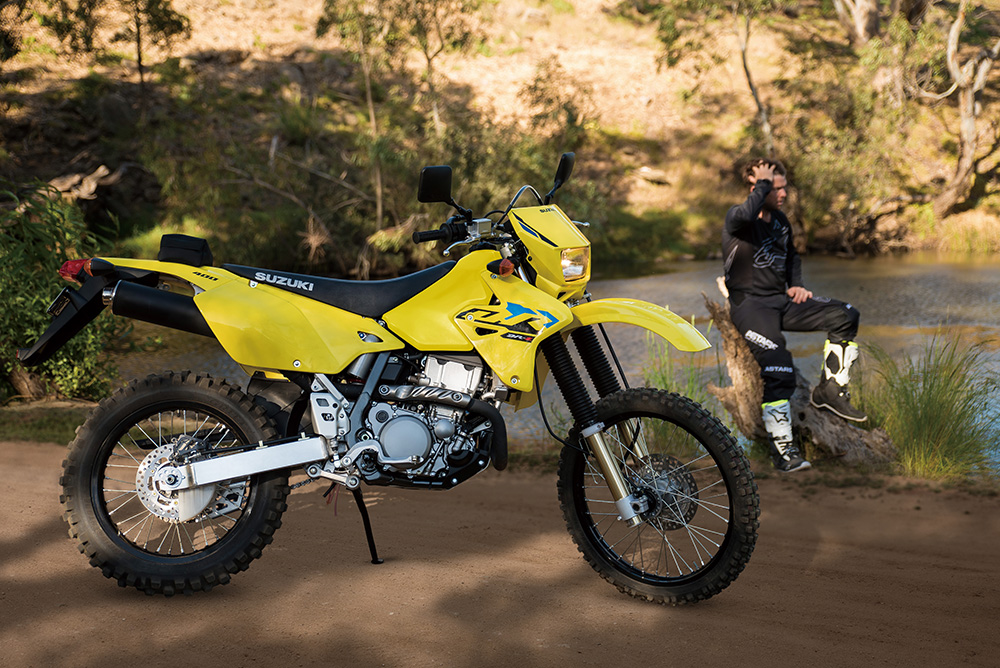

Photo Gallery
Specifications
| Engine Type | 4-stroke, 1-cylinder, liquid-cooled, DOHC |
|---|---|
| Engine Displacement | 398 cm3 (24.3 cu. in) |
| Bore x Stroke | 90.0 mm x 62.6 mm (3.5 in x 2.5 in) |
| Transmission | 5-speed constant mesh |
| Overall Length | 2,310 mm (90.9 in) |
| Overall Width | 825 mm (32.5 in) |
| Overall Height | 1,235 mm (48.6 in) |
| Wheelbase | 1,475 mm (58.1 in) |
| Ground Clearance | 315 mm (12.4 in) |
| Seat Height | 935 mm (36.8 in) |
| Curb Mass | 138 kg (304 lbs) |
|---|---|
| Suspension Front | Inverted telescopic, coil spring, oil damped |
| Suspension Rear | Link type, coil spring, oil damped |
| Brakes Front | Disc |
| Brakes Rear | Disc |
| Tires Front | 80/100-21 M/C 51P, tube type |
| Tires Rear | 120/90-18 M/C 65P, tube type |
| Fuel Tank Capacity | 10.0 L (2.6/2.2 US/Imp gal) |

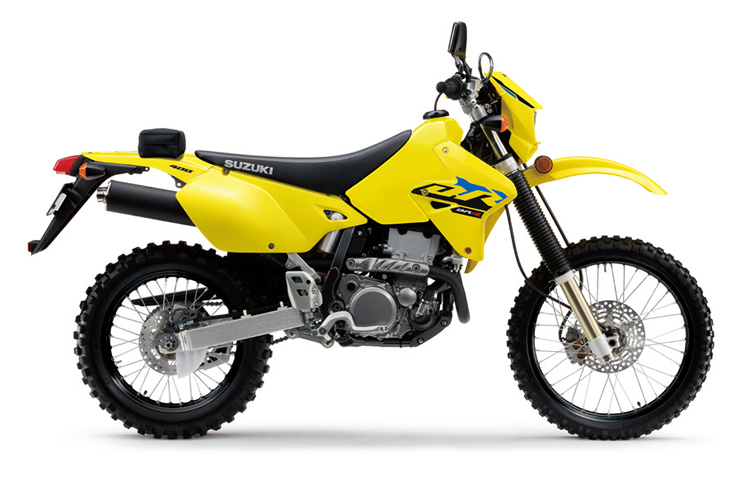

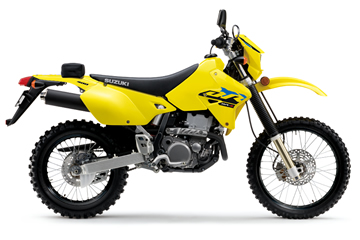

Colors
Champion Yellow No.2 (YU1)
