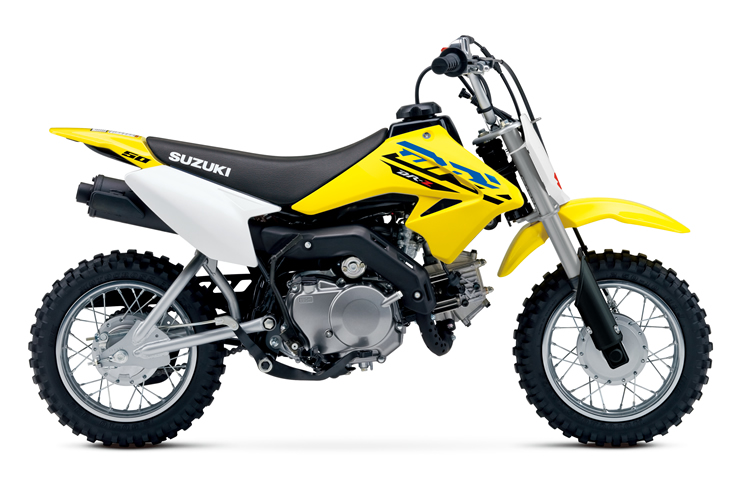

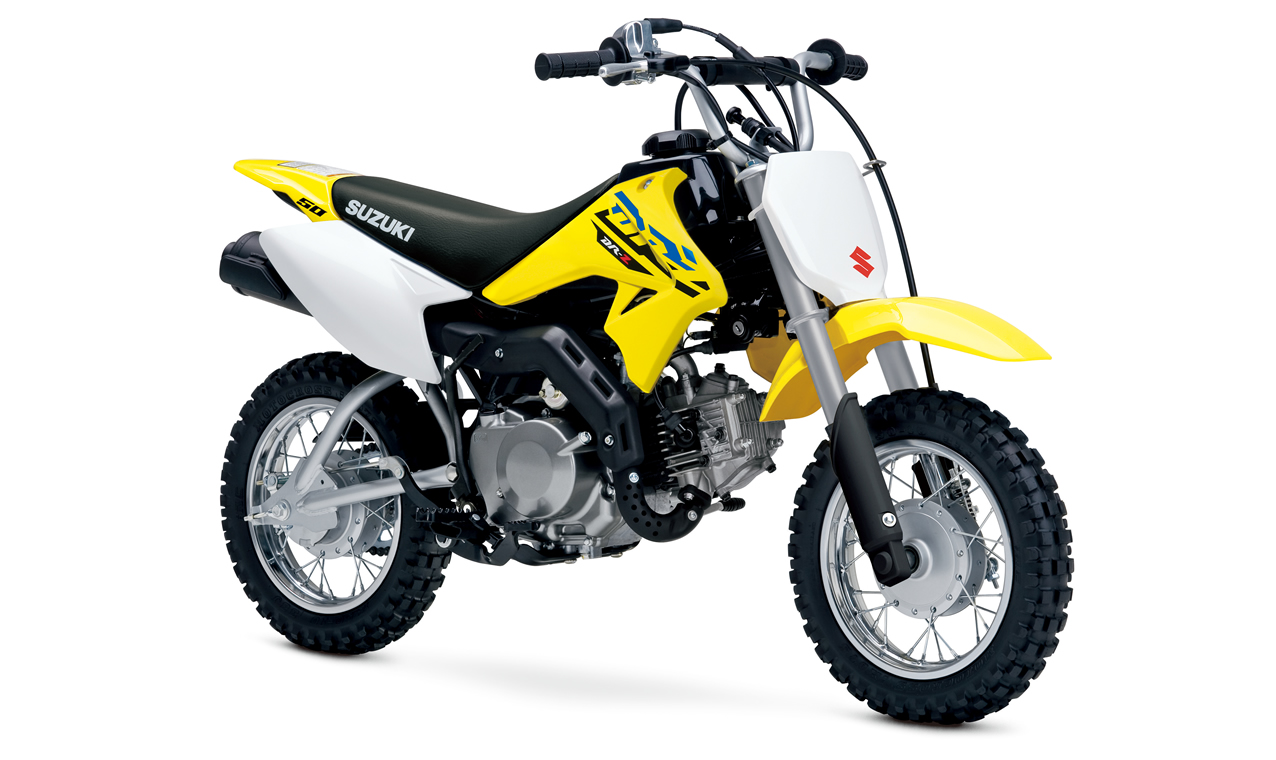

DR-Z50

Laying The Foundation Of Riding Fun

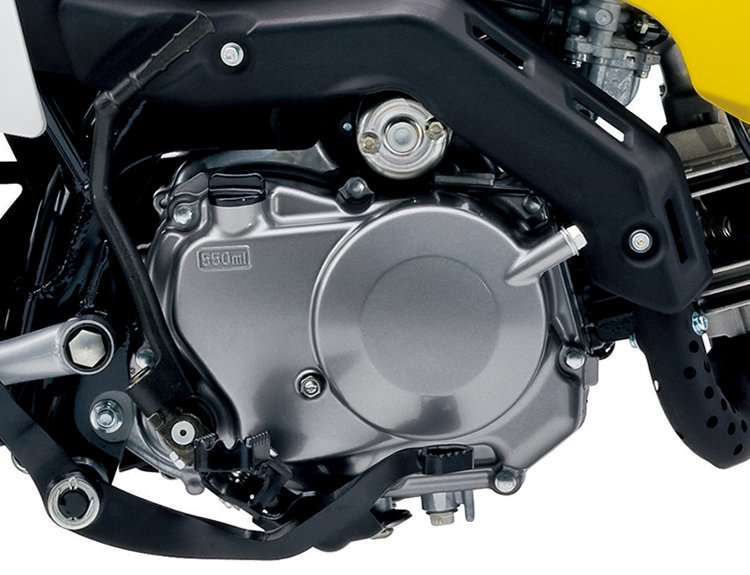

Torque-packed, electric-starting 50cm3 4-stroke engine. Super-cool race-style looks.
An easy and fun choice for children to learn the fundamentals of riding.
With an adequately sized engine and adequately sized chassis, the user-friendly DR-Z50 is ready for many enjoyable years down the road.

Specifications

Engine Type 4-stroke, 1-cylinder, air-cooled, SOHC
Engine Displacement 50 cm3 (3.1 cu. in)
Bore x Stroke 39.0 mm x 41.8 mm (1.5 in x 1.6 in)
Transmission 3-speed constant mesh
Overall Length 1,320 mm (52.0 in)
Overall Width 580 mm (22.8 in)
Overall Height 790 mm (31.1 in)
Wheelbase 935 mm (36.8 in)
Ground Clearance 135 mm (5.3 in)
Seat Height 560 mm (22.0 in)
Curb Mass 54 kg (119 lbs)
Suspension Front Inverted telescopic, coil spring
Suspension Rear Swingarm type, coil spring, oil damped
Brakes Front Drum
Brakes Rear Drum
Tires Front 2.50-10 33J, tube type
Tires Rear 2.50-10 33J, tube type
Fuel Tank Capacity 3.0 L (0.8/0.7 US/Imp gal)

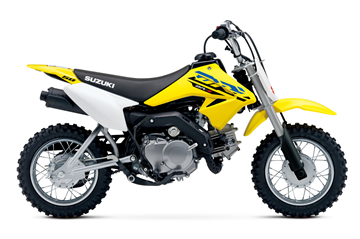

Colors
