KINGQUAD 750AXi 4x4Power Steering/Special Edition

Built Tough for Every Ride

KingQuad750AXi achieves a higher level of balance between practical use and leisure riding.
This makes it equally suitable for ranching and agriculture, or for trail riding and outdoors use.
Suzuki believes, there is a wide array of customers who will enjoy using this ATV for farming, ranching, chores, trail riding, hunting or other types of pleasure.

Key Features

- Bold, angular styling features high-clearance fenders

- Stylish lightweight cast aluminum wheels standard on the KingQuad 750AXi Power Steering Special Edition, (optional on other models)

- Low-effort electronic power steering standard on the KingQuad 750AXi Power Steering and KingQuad 750AXi Power Steering SE

- Thick-wall frame tubes, reinforced brackets and fully independent suspension increase comfort, make it easier to ride on any terrain, and increase towing capacity

- Torque-rich fuel-injected engine and QuadMatic™ transmission with effective engine braking

- Fender- and handlebar-mounted headlights and bright LED tail light

- Multifunction LCD instrument panel features clear visibility and provides service reminders based on running time or mileage

- New, removable cargo rack carrier covers help you set up your KingQuad for almost any mission you care to throw at it

Engine Features

- The powerful, 722cm³, DOHC, single-cylinder, liquid-cooled, four-stroke engine is tuned to deliver stout low- to mid-range torque as well as impressive peak power.

- The engine's high-capacity oil pump delivers a strong flow of cooling oil to the piston oil jet system to help increase engine durability.

- The cylinder and head are canted forward for a low center of gravity, resulting in reduced engine height and lower seat height. High-mount air intake avoids water and debris.

- The 4-valve cylinder head has large 36mm intake valves and straight ports for superb cylinder charging efficiency. A sportbike-derived chain-and-gear camshaft drive system creates a compact cylinder head.

- Lightweight aluminum cylinder uses SCEM (Suzuki Composite Electrochemical Material) coating for excellent heat transfer and ring sealing, resulting in superb combustion chamber efficiency.

- The engine also features dual balancer shafts for smooth operation.

- Advanced Suzuki fuel injection provides superb throttle response and fuel efficiency while delivering power consistently across the full rev-range. It also improves engine starting in all conditions.

- The KingQuad achieves US emissions compliance, including California models that conform to the state's stringent evaporative emissions standard (eligible for green sticker registration).

- High-capacity aluminum radiator with large diameter, thermostatically-controlled cooling fan provides stable engine operating temperature.

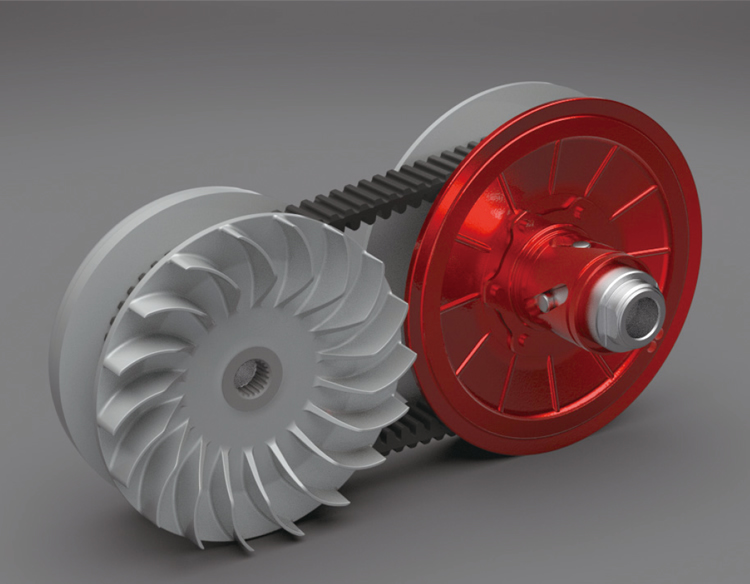

- The QuadMatic™ CVT-type automatic transmission provides versatility and convenience with a fender-mounted gate-type shifter for high/low range selection. Its advanced engine-braking system minimizes free-wheeling with the throttle off and helps control the vehicle during steep descents.

- Carefully selected CVT spring and weight calibration provides smooth and strong acceleration from stops and matches the engine's performance to the chassis' high towing capacity.

- The CVT tuning provides controlled engine braking to boost rider confidence and comfort during downhill riding.

- A compact torque-sensing limited-slip front differential offers potent traction plus light steering. A differential-lock system provides serious 4WD traction.

- Handlebar-mounted push-button controls permit easy selection between 2WD, 4WD, and differential-lock 4WD. An override button on the left handlebar can be used to override the normal speed limiter when getting out of mud.

Chassis Features

- The bold, angular bodywork features high-clearance fenders that offer great protection for the rider from flying debris. The body panels were designed to simplify maintenance needs, such as oil level checks and fuel and air filter service.

- To increase rider comfort, make the ATV easier to ride on any terrain, and increase towing capacity, the KingQuad's frame has thick-wall tubes and reinforced brackets in key areas.

- The base steering characteristics are tuned to an "under-steer" condition for low effort and tighter turning in tight conditions. This permits the use of higher, more comfortable handlebars.

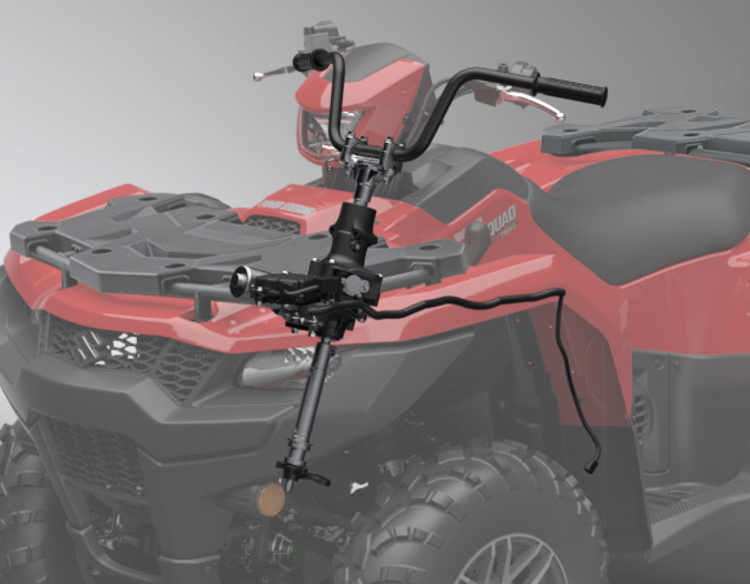

- The KingQuad's advanced electric power steering system significantly reduces steering effort and damps vibration and jolts to the rider.

- Independent double A-arm front suspension (172mm of wheel travel) includes large diameter, gas-charged shock absorbers with 5-way spring preload adjustment.

- Fully independent, A-arm/I-beam rear suspension with 194mm of wheel travel includes large diameter, gas-charged shock absorbers with 5-way spring preload adjustment.

- A large diameter rear stabilizer bar with compliant bushings helps control body movement while reducing shocks to the rider.

- The dual hydraulic front disc brakes combine high-friction brake pad material, fluid lines, and a lever ratio to provide optimal braking performance.

- The sealed, multi-plate rear brake system's foot brake lever ratio provides great rider control. The rear brake's clutch-type design means high durability, reduced unsprung weight, and low maintenance.

- Suzuki's plush T-shaped seat provides you with greater mobility during spirited or difficult terrain riding.

- Polyethylene skid plates provide protection with minimal resistance over rocks and rough terrain. Durable plastic guards protect the front and rear half shafts.

- The KingQuad 750AXi Power Steering Special Edition model's high traction 25-inch Carlisle tires are mounted on lightweight, cast aluminum wheels that are powder-coated black with machined spoke and rim edges.

Utility/Convenience Features

- The 35-watt handlebar-mounted headlight illuminates the trail in the direction you are steering the ATV. Dual 35-watt headlights (with high and low settings) are part of the KingQuad's distinctive bodywork.

- The low-draw and bright LED tail light helps make the ATV visible in dark conditions while conserving power.

- A receiver-type trailer hitch mount makes it easy to select the type of equipment you want to move with the KingQuad's generous towing capacity (up to 600kg).

- Winch-ready mounts and wire conduit make winch installation simple.

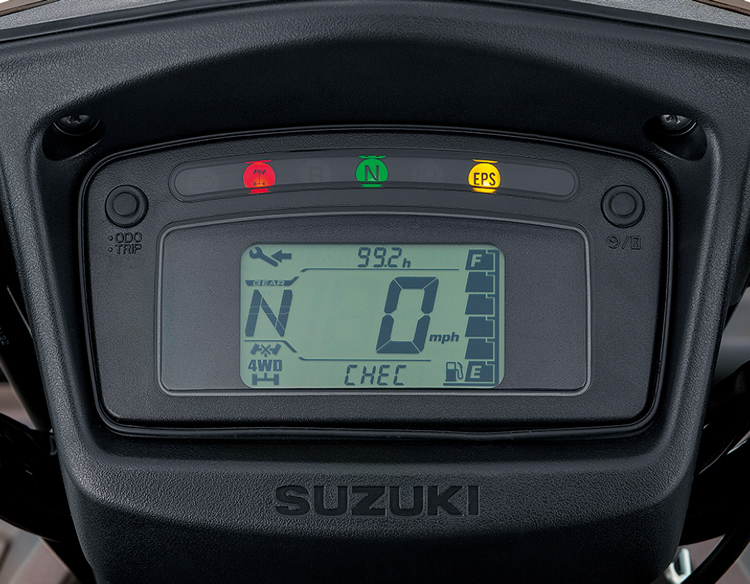

- The multifunction instrument panel has improved appearance and visibility and provides service reminders based on running time or mileage. The instrumentation includes LCD readouts for speedometer, odometer, twin trip meter, hour meter, clock, fuel level, driving range, and drive mode. There are LED indicators for high, low, neutral, reverse, 2WD/4WD, and differential-locked 4WD and LED cautions for fuel injection and engine temperature.

- High-output, three-phase charging system feeds an 18-amp maintenance-free battery for abundant power for easy starting and accessory use. A sealed 12V accessory outlet is standard.

- The large 17.5 L fuel tank is positioned for a low center of gravity. It includes a vacuum-operated petcock and a ratchet-style filler cap (which prevents overtightening so it can be easily unscrewed for refilling).

- A large 4.0L storage compartment is centrally located to the rear of the ATV adjacent to the existing 4.0L left-side compartment, providing generous cargo capacity. The 2.8L water-resistant front storage compartment includes an easy access screw-on cap.

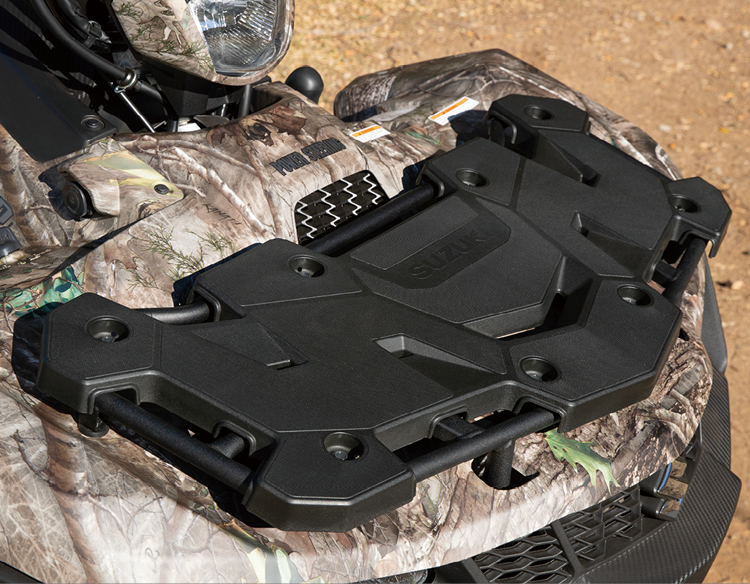

- The rugged front and rear steel-tube cargo racks have wrinkle paint finish for durability and scratch resistance. High-impact carrier covers shield cargo from wear while enhancing the KingQuad's appearance. The covers are easily removable for mounting of Suzuki accessories or other gear directly to the cargo racks.

- Full floorboards with integrated raised footpegs provide protection.

Special Features

- A variety of Suzuki Genuine Accessories are available, including winches, windshield, front and rear bumpers, a quick-release snow plow, aluminum skid pans, rack extensions, utility box and more.

- Minimum Operator Age: 16 Years Old

*Click the icons

Specifications

Overall length 2150 mm (84.6 in)
Overall width 1215 mm (47.8 in)
Overall height 1285 mm (50.6 in)
Wheelbase 1285mm (50.6 in)
Ground clearance 260 mm (10.2 in)
Seat height 920 mm (36.2 in)
Curb mass [For Californian specs.]
LT-A750X: 321kg (708 lbs)
LT-A750XP: 330kg (728 lbs)
LT-A750XPZ: 328kg (723 lbs)
[Except for Californian specs.]
LT-A750X: 320kg (706 lbs)
LT-A750XP: 329kg (725 lbs)
LT-A750XPZ: 327kg (721 lbs)
Engine type 4-stroke, 1-cylinder, liquid-cooled, DOHC
Bore 104.0 mm (4.1 in)
Stroke 85.0 mm (3.3 in)
Engine displacement 722 cm3 (44.1 cu.in)
Compression ratio 9.9 : 1
Fuel system Fuel injection
Starter system Electric
Lubrication system Wet sump
Transmission Automatic variable ratio (V-belt)
Automatic transmission ratio 2.763 - 0.779 (Variable change)
Secondary reduction ratio 2.158 (40/21 x 17/15)
Final reduction ratio 3.600 (36/10)
Front Suspension Independent double wishbone, coil spring, oil damped
Rear Suspension Independent double wishbone, coil spring, oil damped
Rake LT-A750X: 1.6°
LT-A750XP/XPZ: 3.3°
Trail LT-A750X: 3.4 mm (0.13 in)
LT-A750XP/XPZ: 16.7 mm (0.66 in)
Front Brakes Disc, twin
Rear Brakes Sealed oil-bathed multi-disc
Front Tires AT25 × 8-12☆☆ , tubeless
Rear Tires AT25 × 10-12☆☆ , tubeless
Ignition type Electronic ignition
Fuel tank capacity 17.5 L (4.6/3.8 US/Imp gal)
Engine oil (overhaul) 3.0 L (3.2/2.6 US/Imp qt)

*North American Spec. shown

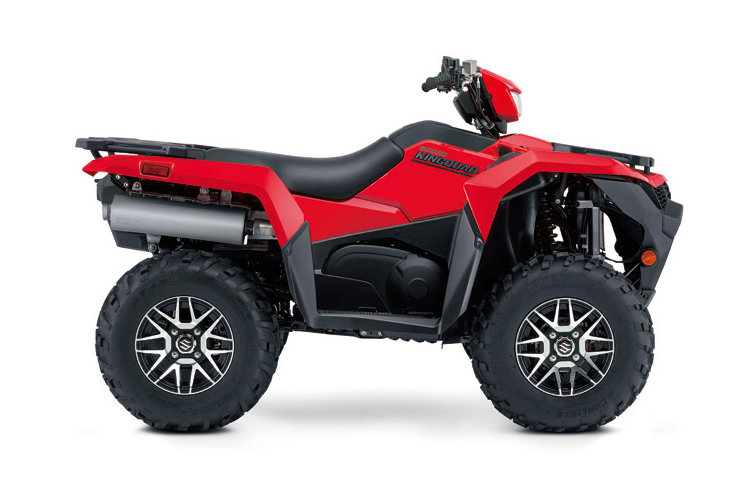

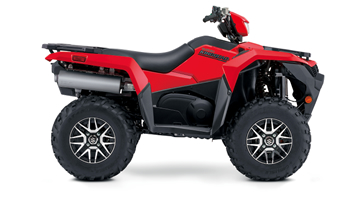

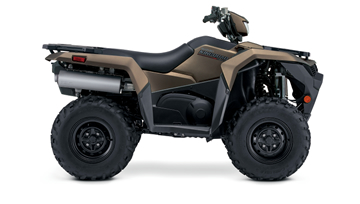

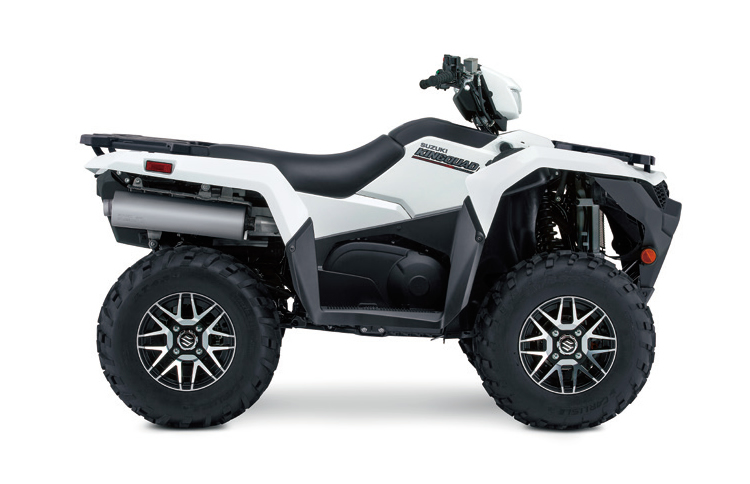

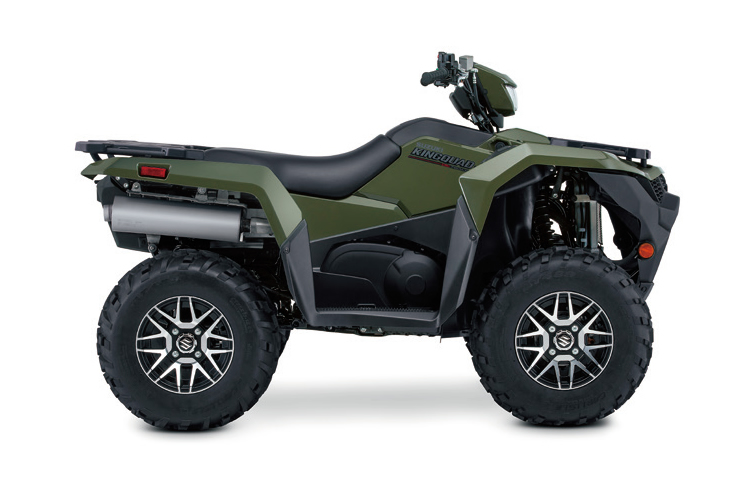

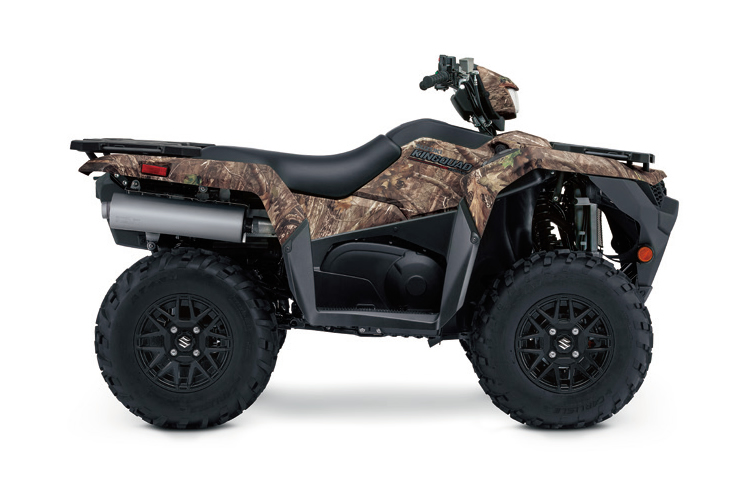

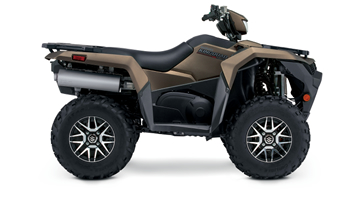

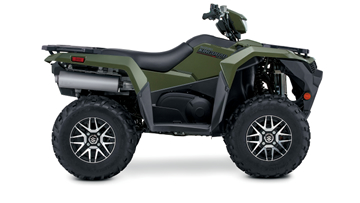

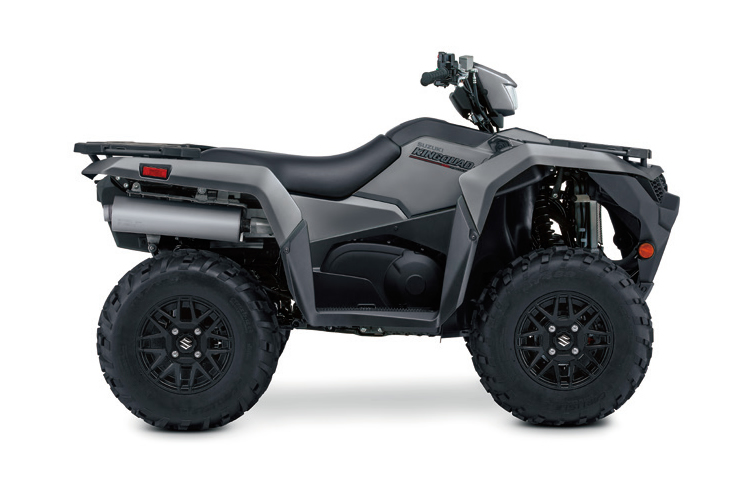

Colors [KINGQUAD 750AXi 4x4
Power Steering Special Edition]

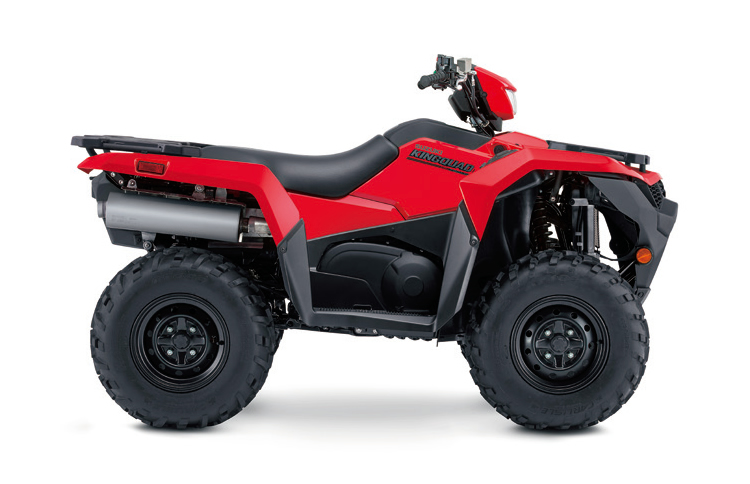

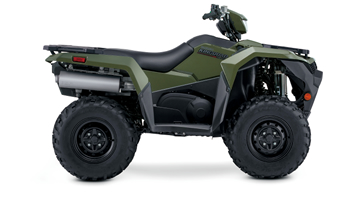

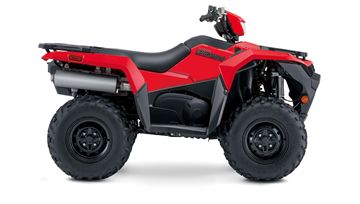

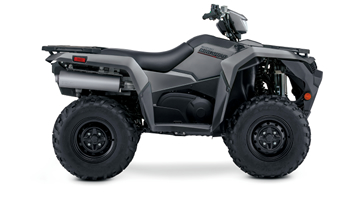

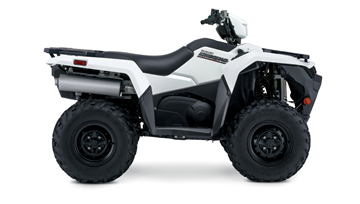

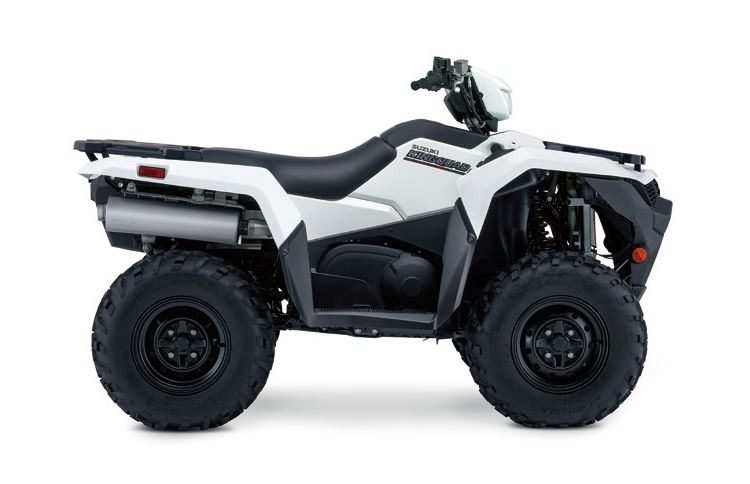

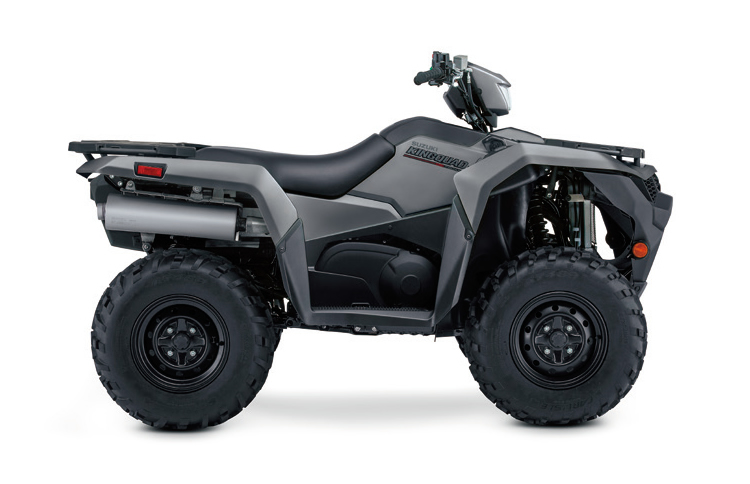

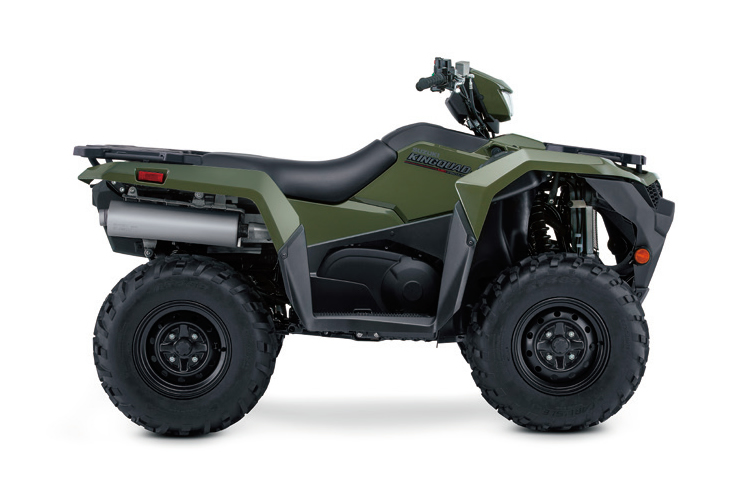

Colors [KINGQUAD 750AXi 4x4
/ Power Steering]
