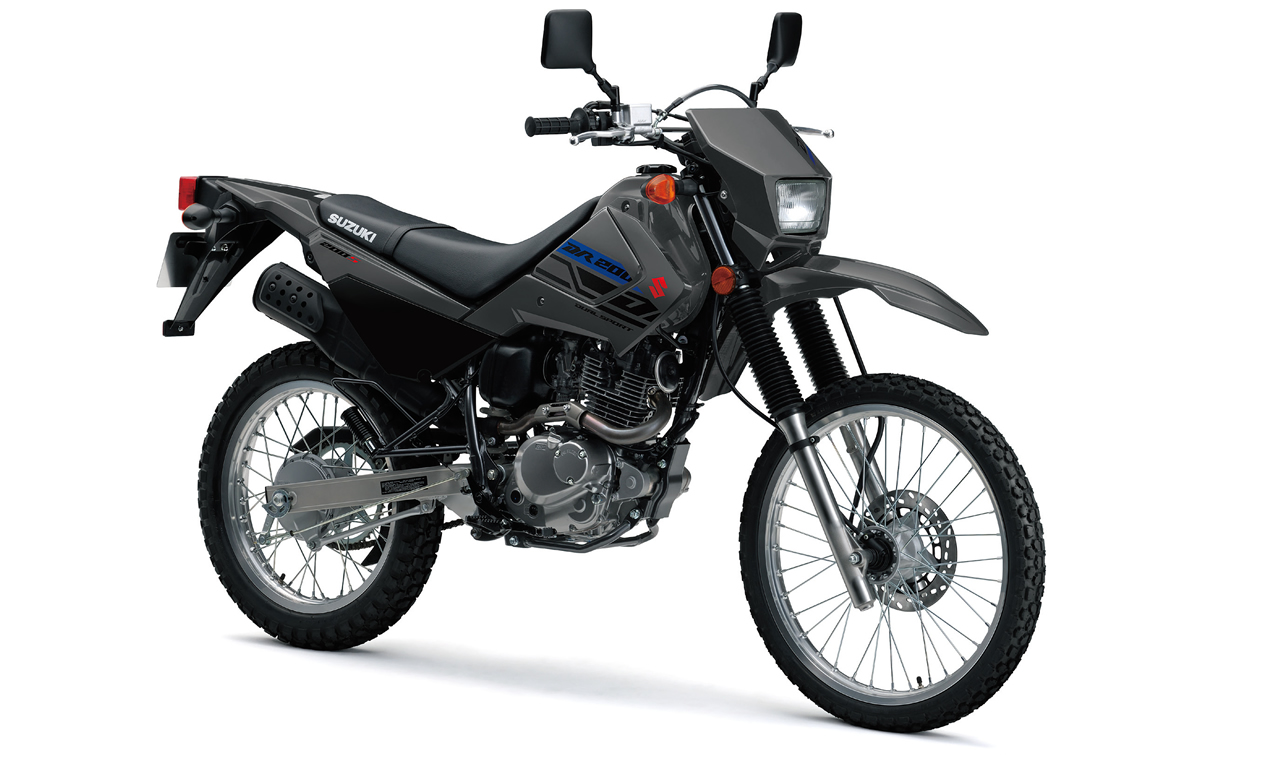

DR200S
All-Road Style for Many Miles
Racy styling meets dependable performance. Increased riding comfort meets proven reliability.
High-mileage performance meets the dirt and the street.
Whether you are looking for an affordable commuter or an accessible dual-purpose bike that excels both on the road and on dirt trails, the Suzuki DR200S deserves a closer look.
- Key Features
-
- Ultra-reliable 199cm³ engine provides just the right amount of torque and horsepower.
- Digital CDI ignition system is tuned to optimize power characteristics.
- Ergonomic chassis design and compact frame are a good fit for a wide range of riders.
- The telescopic front forks and mono-shock rear suspension deliver 205mm of both front and rear wheel travel.
- Front disc and rear drum brakes deliver reliable stopping power.
- Engine Features
-
- Ultra-reliable 199cm³ air-cooled, single-cylinder, SOHC engine provides just the right amount of torque and horsepower.
- Suzuki Composite Electrochemical Material (SCEM)-coated aluminum cylinder is durable, lightweight, and provides superior heat transfer.
- Push-button electric start fires up the bike consistently and is powered by a compact and reliable maintenance-free battery.
- Digitally-controlled CDI ignition system is engineered to match ignition timing throughout the engine rpm range.
- The 5-speed transmission has gear ratios suitable for a wide variety of riding conditions.
- Cable-operated, quick-action, rack-and-pinion clutch design ensures light and positive operation.
- Engine power routes to the rear wheel via a low-maintenance, long-life sealed chain.
- Chassis Features
-
- Influenced by Suzuki's high-performance RM-Z series motocross bikes, the DR200S features an ergonomic design that makes it a better fit for a wider range of riders, both on dirt and on pavement.
- Compact frame is made of sturdy high tensile strength steel pipe.
- The telescopic front forks and single shock absorber rear suspension with adjustable spring preload deliver 205mm of both front and rear wheel travel.
- Front disc and rear drum brakes deliver reliable stopping power.
- The durable front and rear tires with special tread patterns are designed for smooth riding, both on and off the pavement.
- Backward-folding rearview mirrors, gearshift, and brake levers help reduce damage from obstacle impact.
- With its 12.5L fuel tank, the DR200S is ready to tear up the trails all day or travel long distances without refueling.
- The redesigned fuel tank, seat and plastic surrounding pieces provide greater comfort and increased freedom to move while riding.
- Electrical Features
-
- The electric start system fires up the bike consistently at the push of a button and features a lightweight starter motor and a compact, maintenance-free battery.
- A bright 60/55-watt H4 halogen headlight helps you ride on into the night.
- The tail light and turn signals match the sleek style of the seat and bodywork.
- The road-legal lighting is complemented with rubber-mounted turn signals and a horn.
- Additional Features
-
- Genuine Suzuki Accessories for DR200S owners are available, including a selection of Suzuki logo apparel.
*Click the icons
Specifications
Engine Type | 4-stroke, 1-cylinder, air-cooled, SOHC |
---|---|
Engine Displacement | 199 cm3 (12.1 cu. in) |
Bore x Stroke | 66.0 mm x 58.2 mm (2.6 in x 2.3 in) |
Transmission | 5-speed constant mesh |
Overall Length | 2,155 mm (84.8 in) |
Overall Width | 805 mm (31.7 in) |
Overall Height | 1,140 mm (44.9 in) |
Wheelbase | 1,405 mm (55.3 in) |
Ground Clearance | 255 mm ( 10.0 in) |
Seat Height | 845 mm (33.3 in) |
Curb Mass | 126 kg (278 lbs) |
---|---|
Suspension Front | Telescopic, coil spring, oil damped |
Suspension Rear | Link type, coil spring, oil damped |
Brakes Front | Disc |
Brakes Rear | Drum |
Tires Front | 70/100-21M/C 44P, tube type |
Tires Rear | 100/90-18M/C 56P, tube type |
Fuel Tank Capacity | 12.5 L (3.3/2.7 US/Imp gal) |
